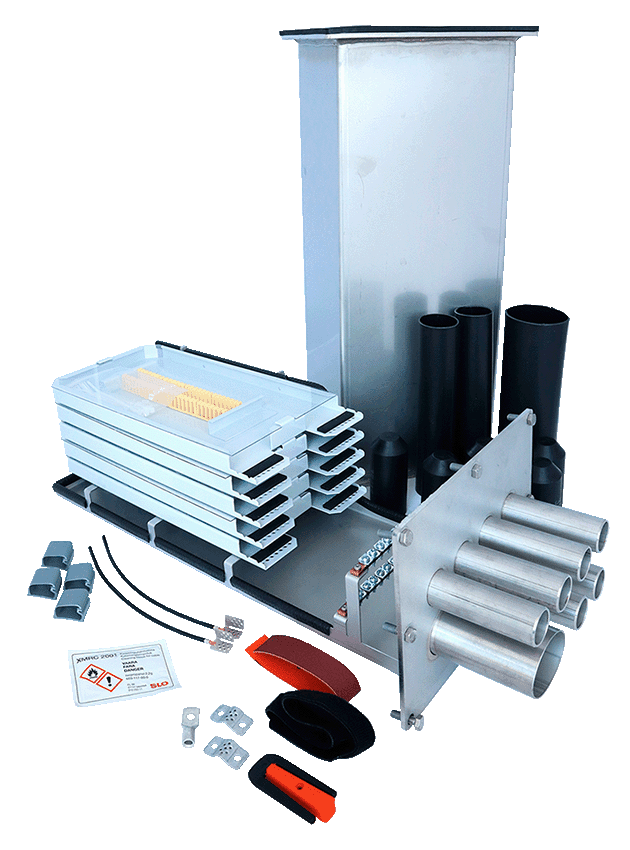

NC-400 is a butt joint type universal closure for trunk, feeder and access networks for splicing max. 480 fibres.
Features
- Can be installed directly to the ground, to a cable well and with a separate mounting bracket to the wall or to a pole
- Provides pressure-tight protection for optical fibres and splices
- Suits for different type of cable constructions
- Can be used for the mid-span access
- Is delivered as a pre-assembled kit including all the necessary materials except fibre protection sleeves
- Supplied with NC-48S splice trays that can be drawn out separately. NC-96 splice trays can be also used with NC-400 joint closures.
- Capacity for 432 fibres
- Cable inlets:
- 1 oval inlet with inner dimensions 55,6 x 40,9 mm
- 6 inlets with inner dia. 23 mm
- Size: 487 x 185 x 145 mm
- Material: acid-proof stainless steel
- Tightness: IP 67
- The tightness of every closure is tested in the factory
Accessories
- Heat-shrinkable sleeves for all cable inlets
- Heat-shrinkable end-plugs for non-used cable inlets, 6 pcs
- Branch-off clip for a big heat-shrinkable tube
- NC-48S splice trays for 48 fibres according to the fibre quantity
- Earthing connector for 16 mm2 earthing electrode
- Pack of silica gel moisture absorbent
