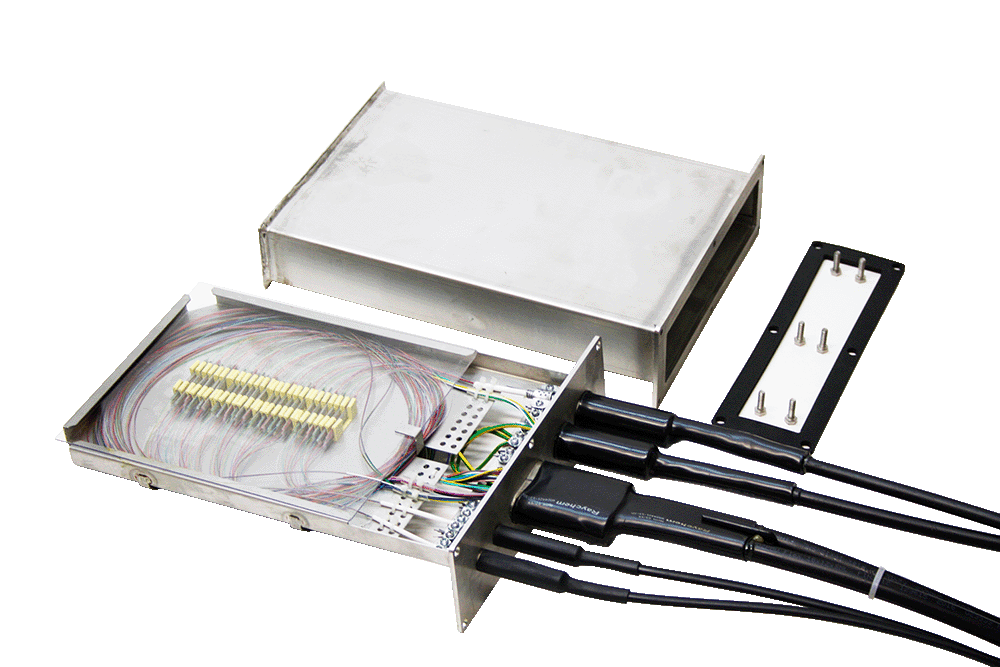

Joint closure NC-410 96F

NC-410 is a butt joint type universal closure for trunk, feeder and access networks for splicing max. 96 fibres.

Features

• Can be installed directly to the ground and to a manhole
• Provides pressure-tight protection for optical fibres and splices
• Suits for different type of cable constructions
• Can be used for the mid-span access
• Simple and installer-friendly construction
• Short stripping lengths of the cables
• No need for guiding fibres to separate splice trays
• Is delivered as a pre-assembled kit including all the necessary materials except fibre protection sleeves
• Fibre splices are placed to the rubber holders that can be fastened freely to the fixed splice tray
• Each holder has space for 48 fibre protection sleeves
• Capacity for 96 fibres
• Cable inlets:
  • 1 oval inlet with inner dimensions 55,6 x 40,9 mm
  • 2 inlets with inner dia. 23 mm
  • 2 inlets with inner dia. 11 mm
• Size:477 x 290 x 94 mm
• Material: acid-proof stainless steel
• Tightness: IP 67
• The tightness of every closure is tested in the factory

Accessories

• Heat-shrinkable sleeves for all cable inlets
• Heat-shrinkable end-plugs for non-used cable inlets, 4 pcs
• Branch-off clip for a big heat-shrinkable tube
• Holder for 24 fibre protection sleeves, 4 pcs
• Earthing connector for 16 mm2 earthing electrode
• Pack of silica gel moisture absorbent
