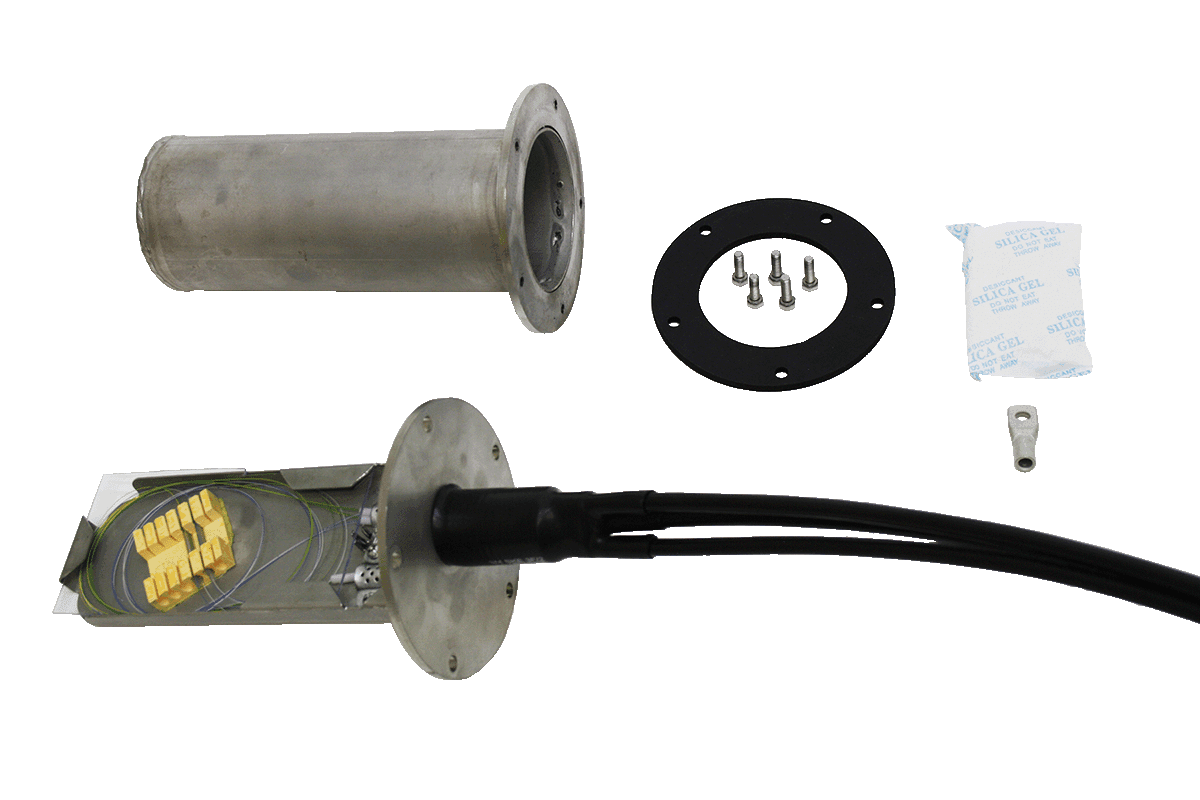

Joint closure NC-412 12F

NC-412 is a butt joint type closure for optical fibre access networks for splicing max. 12 fibres. Typically these closures are used in the countryside for branching a small feeder cable to two or even three drop cables near single-family houses.

Features

• Can be installed directly to the ground, to a manhole and to the pole with a separate pole/wall bracket
• Provides pressure-tight protection for optical fibres and splices.
• Suits for different type of cable constructions
• Simple and installer-friendly construction
  • Short stripping lengths of the cables
  • No need for guiding fibres to a separate splice tray
• Is delivered as a pre-assembled kit for 12 splices with a heat-shrinkable sleeve for 3 cables
• Capacity for 12 fibres
• Cable inlets:
  • One cable inlet with inner dia. 23 mm
• Size: 250 x Ø 76 mm
• Material: acid-proof stainless steel
• Tightness: IP 67
• The tightness of every closure is tested in the factory

Accessories

• 3-way heat shrink breakout boot, 1 pc
• Fibre protection sleeve, length 45 mm, 12 pcs
• Earthing connector for 16 mm² earthing electrode
• Pack of silica gel moisture absorbent
