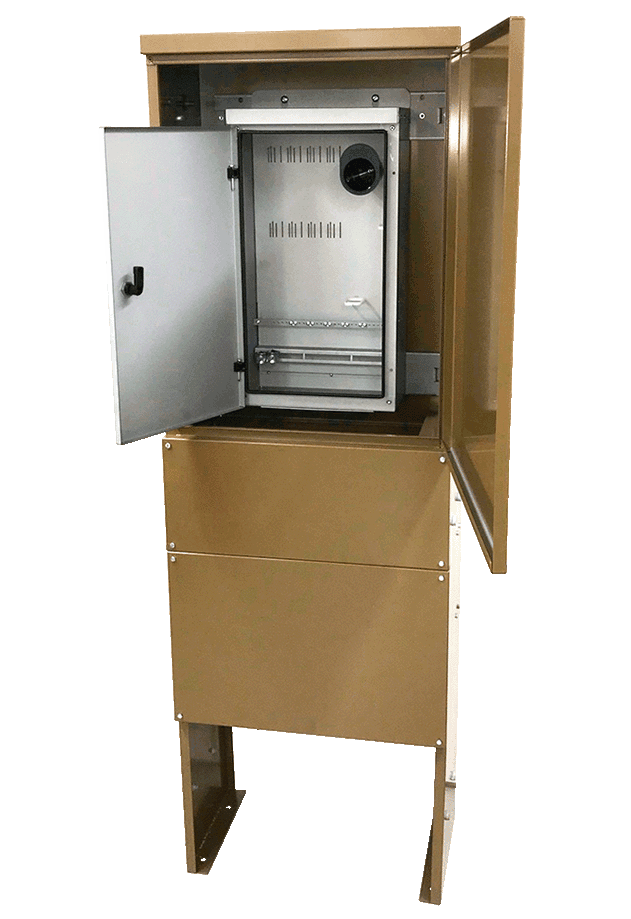

K0 cabinet + splice cabinet NC-320

The cabinet combination is used for connecting splice trays and connector panels inside the optical network.

Features

• Splice cabinet combination for outdoor use, which includes an outdoor cabinet with a stand and a splice cabinet
• The product has been designed especially for FTTH applications
• Basic assembly of LV2468 Splice Cabinet Combination K0 + NC-320, 850mm:
  • LV1621 K0 Street distribution cabinet with a stand, height 850 mm
  • LV1267 NC-320 Splice cabinet
• The outer parts of the K0 cabinet are galvanized and powder-painted steel plate
  • Colour RAL 7008
• Splice cabinet NC-320 is made of galvanized steel plate
  • Unpainted
• Slots for splice trays
  • 12 pcs: NC-48S splice tray for 48 fiber splices
  • 8 pcs: NC-96 splice tray for 96 fiber splices
• Total capacity up to 768 fiber splices
• User-friendly and robust design
  • Dust-proof construction
  • NC-320 cabinet can be easily removed from the K0 cabinet during the installation work
  • The inlets of the NC-320 cabinet are wide and equipped with bristle sealings, so it is easy to bring cables inside the cabinet
  • Guiding system for thin-walled loose tubes
  • Mounting and grounding bars for incoming cables

Dimensions

• K0 cabinet: 1850 (H) x 604 (W) x 351 (D) mm
• NC-320 splice cabinet: 625 (H) x 351 (W) x 199 (D) mm
• Full assembly: 1850 (H) x 604 (W) x 351 (D) mm
