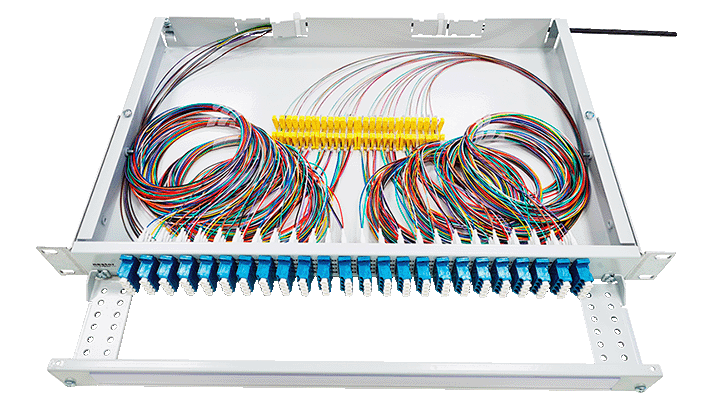

Nestor Panel D

Nestor Panel D is an adjustable patch panel for 19” racks and cabinets. Its deep panel frame provides sufficient space for splicing.

Features

• Dimensions: 430 (19”) (W) x 367 (D) x 44 (1U) (H) mm
  • The overall depth includes the protection section in front of the panel. The depth of the panel part alone is 280 mm.
• Material: Powder-painted galvanized steel
• Color: RAL 7035 (grey)
• Available with different adapter plates for capacity 24-96 fibers. Adapter alternatives:
  • SC simplex (24F)
  • SC duplex (48F)
  • LC duplex (48F)
  • LC quad (96F)
• Also available with multimode adapters (SC or LC type)
• The panels can be stacked directly on top of each other
• Supplied with removable guide hooks for patch cords and plate with tag holder for markings and for patch cord protection
• Simple design with a removable cover
• Mounting brackets with depth adjustment for 19” installation
• Nestor Panel D can be delivered as a basic assembly, pre-assembled pigtail kit or pre-assembled pigtail cable kit

Basic assembly

• Frame and cover
• Adjustable mounting brackets for 19” racks and cabinets
• Removable guide hooks and plate with tag holder
• Holders for splice protection sleeves according to fibre count
• Fastening and grounding materials for incoming cables
• Mounting screws and nuts for 19” installation
