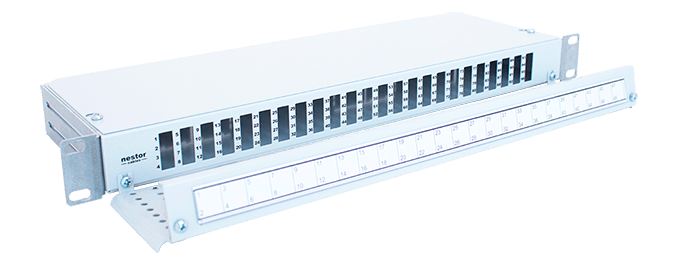

Nestor Panel Plus

Nestor Panel Plus is an adjustable patch panel for 19” racks and cabinets. It is available with different adapter plates for capacity 24-96 fibers.

• Adapter alternatives
  • SC simplex (24F)
  • SC duplex (48F)
  • LC duplex (48F)
  • LC quad (96F)
  • Also available with multimode adapters (SC or LC type)
• The panels can be stacked directly on top of each other
• Supplied with removable guide hooks for patch cords and plate with tag holder for markings and for patch cord protection
• Simple design with a removable cover
• Mounting brackets with depth adjustment for 19” installation
• The panel can also be mounted directly on the wall without using 19” rack by installing the mounting brackets in the opposite position
• The panel is also available with adjustable fibre shelf
• Nestor Panel Plus can be delivered as a basic assembly, pre-assembled pigtail kit or pre-assembled pigtail cable kit
• Dimensions 430 (19”) x 140 + 90 x 44 (1U) mm
• Material Powder-painted galvanized steel
• Color RAL 7035 (grey)
