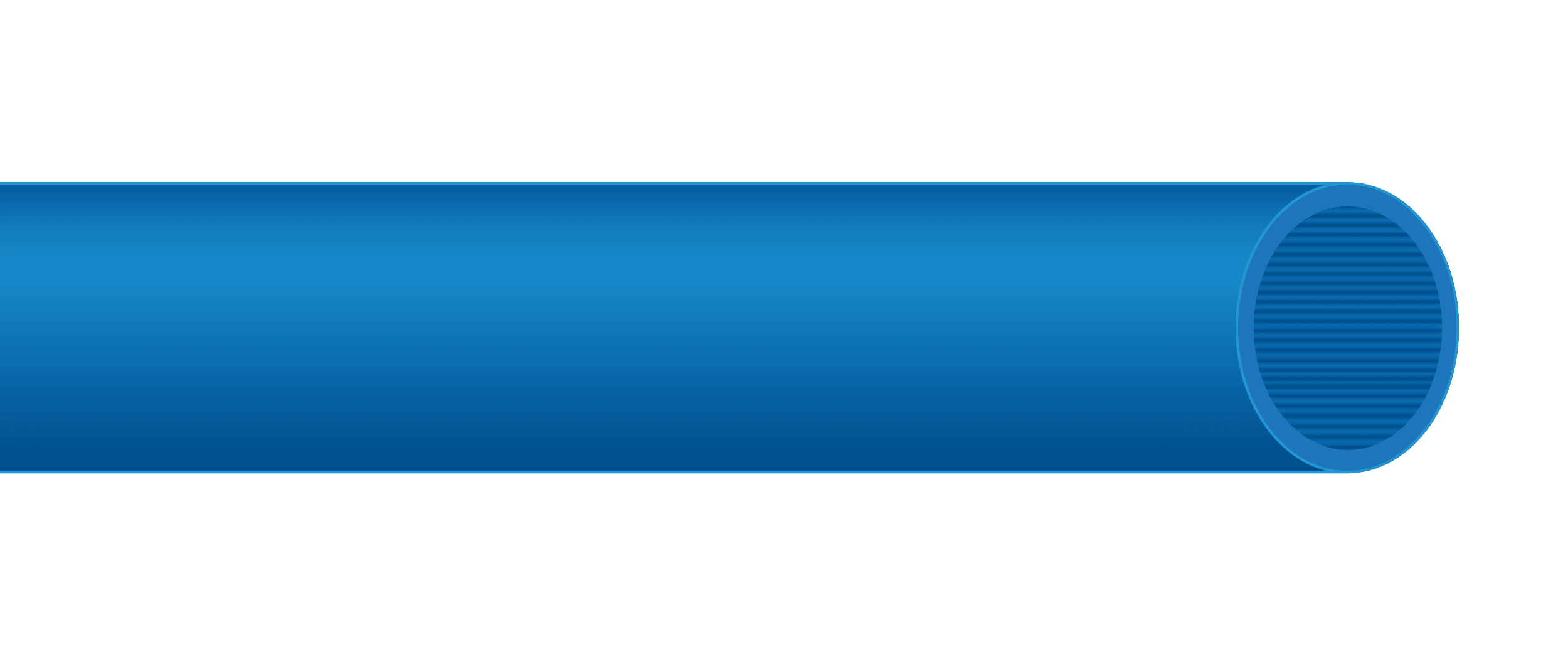

Optimus DI 12/10 mm Microduct
Outer diameter of the microduct is 12 mm and inner diameter is 10 mm.
Description
Outer diameter of the microduct is 12 mm and inner diameter is 10 mm. Available as a bundle with 2, 4 or 7 microducts.
Suitable fibre optic cables:
- FZOMU-SD Flex Micro, 24-192 fibres
- FZOMU-SD Micro, 24-192 fibres
Accessories for the microduct:
- Straight connector
- End stop
- Gasblock
- Divisible seal
Properties
| Property | |
|---|---|
| Delivery lengths | 500 m, 2000 m |
| Temperature range during transport, storage and operation | -45 - +60 °C |
| Temperature range during installation | -15 - +40 °C |
| Minimum bending radius (OD = outer diameter) | 30 x OD |
Product information
| Product | Diameter | Weight | Tensile strength | Maximum outer diameter |
|---|---|---|---|---|
| Optimus DI 1 x 12/10 mm | 12,0 -0,1/+0,2 mm | 91 kg/km | 890 N | 15 mm |
| Optimus DI 2 x 12/10 mm | 12,0 -0,1/+0,2 mm | 158 kg/km | 1540 N | 27 mm |
| Optimus DI 4 x 12/10 mm | 12,0 -0,1/+0,2 mm | 310 kg/km | 3030 N | 35,6 mm |
| Optimus DI 7 x 12/10 mm | 12,0 -0,1/+0,2 mm | 460 kg/km | 4500 N | 39 mm |
