Description

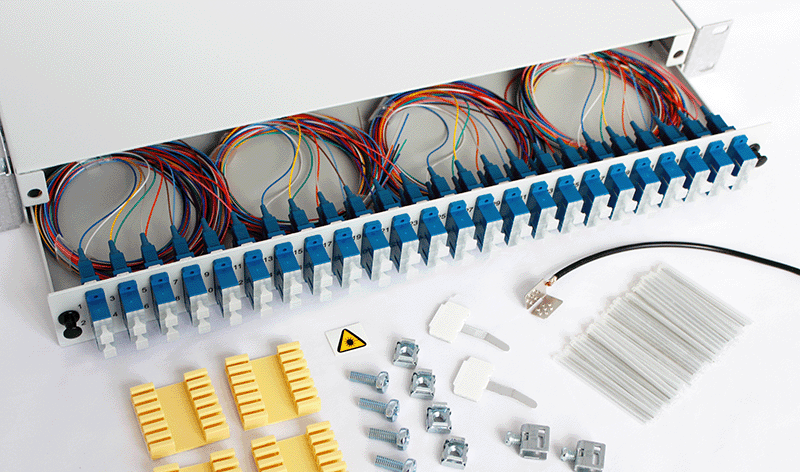

NC-200 is an universal patch panel for 19” racks and cabinets. It has a capacity to terminate up to 48 fibers with SC, SC-D, LC-D or LC-Q. The panels can be delivered as a basic assembly but also as a pre-assembled version including colour-coded pigtail sets, connector adapters and fibre protection sleeves for a defined number of fibres or as a pre-terminated patch panel with a pigtail cable.
Features
- Capacity for 48 fibres
- Can be used with different type of indoor or outdoor cables
- Supplied with a gliding inner part for splices and connectors
- Fibre splices are placed to the rubber holders that can be fastened freely to the bottom of the panel
- Each holder has space for 12 fibre protection sleeves
- Different versions for SC/LC-Duplex and for SC-Duplex adapters
- Can be stacked directly over each other
- The places of the mounting brackets can be freely adjusted
- Does not have guides nor protection plate in the front side for patch cords but if these are needed, separate cable guides, guiding panels and storage shelves are available
- Size: 430 (19”) x 280x 44 (1 U mm
- Material: powder-painted aluminium plate
- Colour: RAL 7035
- Can be delivered as a basic assembly but also as a pre-assembled version including colour-coded pigtail sets, connector adapters and fibre protection sleeves for a defined number of fibres or as a pre-terminated patch panel with a pigtail cable
Basic assembly
- Frame and a gliding inner part
- Adjustable mounting brackets for 19” racks
- Holder for 12 fibre protection sleeves, 4 pcs
- Fastening and grounding materialsfor 1 cable
- Mounting accessories for 19” rack
Properties
| Property | |
|---|---|
| Size | 430 (19”) x 280x 44 (1 U) mm |
| Material | Powder-painted aluminium plate |
| Colour | RAL 7035 |
Product information
| Product | Nestor Code | STK |
|---|---|---|
| Patch panel NC-200 SC/LC-D | LV1072 | 7284043 |
| Patch panel NC-200 SC-D/LC-Q | LV1073 | 7284044 |
| NC-200 SC 12xSMT pigtail kit | LV1080 | 7284047 |
| NC-200 SC 24xSMT pigtail kit | LV1081 | 7284048 |
| NC-200 SC 48xSMT pigtail kit | LV1082 | 7284049 |
| NC-200 SC/APC 12xSMT pigtail kit | LV1662 | 7284452 |
| NC-200 SC/APC 24xSMT pigtail kit | LV1663 | 7284453 |
| NC-200 SC/APC 48xSMT pigtail kit | LV1664 | 7284454 |
| NC-200 LC 12xSMT pigtail kit | LV1440 | |
| NC-200 LC 24xSMT pigtail kit | LV1083 | 7284050 |
| NC-200 LC 48xSMT pigtail kit | LV1084 | 7284051 |
| NC-200 SC 24xSML pigtail cable kit 5 m | LV1091 | 7284056 |
| NC-200 SC 24xSML pigtail cable kit 25 m | LV1093 | 7284058 |
| NC-200 SC 24xSML pigtail cable kit 50 m | LV1095 | 7284060 |
| NC-200 SC 48xSML pigtail cable kit 5 m | LV1097 | 7284061 |
| NC-200 SC 48xSML pigtail cable kit 15 m | LV1098 | 7284062 |
| NC-200 SC 48xSML pigtail cable kit 25 m | LV1099 | 7284063 |
| NC-200 SC 48xSML pigtail cable kit 50 m | LV1101 | 7284065 |
| NC-200 SC 48xSML pigtail cable kit A m | LV1102 | 7284130 |
| NC-200 SC/APC 24xSML pigtail cable kit 5 m | LV1365 | 7284288 |
| NC-200 SC/APC 24xSML pigtail cable kit 50 m | LV1970 | 7284511 |
| NC-200 SC/APC 48xSML pigtail cable kit 5 m | LV1368 | 7284291 |
| NC-200 SC/APC 48xSML pigtail cable kit 15 m | LV1369 | 7284292 |
| NC-200 SC/APC 48xSML pigtail cable kit 25 m | LV1370 | 7284293 |
| NC-200 SC/APC 48xSML pigtail cable kit 50 m | LV1461 | 7284335 |
| NC-200 SC-D 24xSML pigtail cable kit 5 m | LV1971 | 7284512 |
| NC-200 SC-D 24xSML pigtail cable kit 25 m | LV1972 | 7284513 |
| NC-200 SC-D 24xSML pigtail cable kit 50 m | LV1973 | 7284514 |
| NC-200 SC-D/APC 24xSML pigtail cable kit 5 m | LV1974 | 7284515 |
| NC-200 SC-D/APC 24xSML pigtail cable kit 25 m | LV1975 | 7284516 |
| NC-200 SC-D/APC 24xSML pigtail cable kit 50 m | LV1976 | 7284517 |
