Termination box NC-160

NC-160 is a plastic wall box for terminating indoor or outdoor cables with max. 24 fibres in demanding conditions and in indoor or outdoor installations.

Features

• For indoor and outdoor installations
• Suits for different type of cable constructions
• Can be used as a wall-mountable joint closure or as a termination box
• Four cable inlets on the foot
• Capacity for 24 fibres
• Fibre splices are placed to the rubber holders that can be fastened freely to the bottom of the box
• Each holder has space for 12 fibre protection sleeves
• Includes a separate adapter plate for 12 SC or LC-Duplex adapters
• Size: 250 x 175 x 75 mm
• Material: polycarbonate
• Tightness: IP 65
• Colour: RAL 7035 (grey)

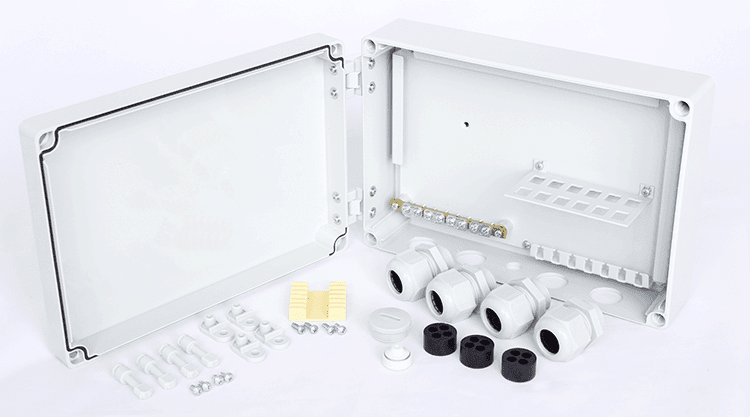

Basic assembly

• Frame and a hinged door
• Adapter plate for 12 SC or LC-Duplex adapters
• Holder for 12 fibre protection sleeves, 2 pcs
• Fastening and grounding bar and materials for incoming cables
• Cable inlet sleeve, 4 pcs
• Blanking plug for unused cable inlet, 1 pc
